AIR DRIER, BRAKE, PUREST, SERV

Specifications
Attribute Detail
Air Dryer Type Desiccant cartridge (Multi-Treatment Cartridge)
Cleaning System Five-stage contaminant and moisture removal
Mounting Style 4-bolt slide-in and -out design for on-vehicle replacement
Desiccant Weight Approximately 3.5 lbs
Package Weight Approximately 5.0 lbs
Dimensions (approx.) 8.3″ H x 6.5″ W x 10″ L (or 6.5″ H x 8″ W x 10.5″ L, depending on packaging)
Compatibility Used with Haldex PURest, DRYest, and ModulAir 115 air dryer systems

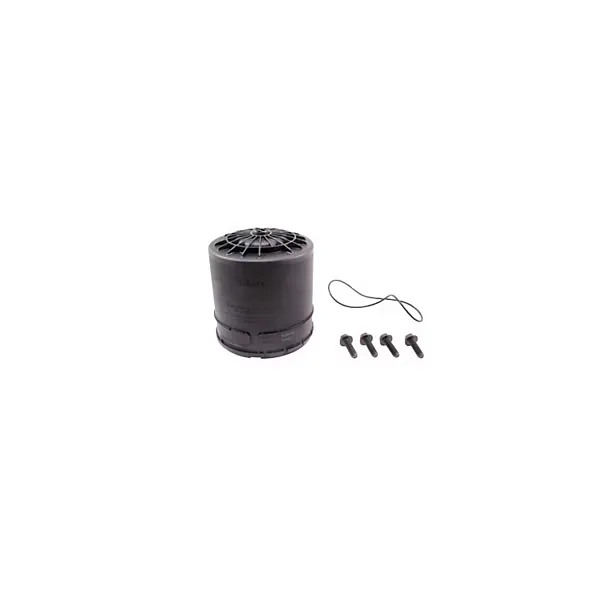

Included Components Desiccant cartridge, O-ring, mounting bolts, and installation instructions
Max Working Pressure (system) 150 psi
Max Operating Temp. (inlet air) 175°F (80°C)
