WHEEL HUB
Specifications
Alternate Part Numbers

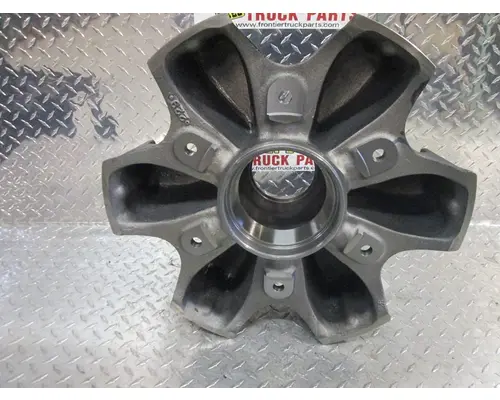

Type: Trailer Spoke Wheel Hub.
Number of Spokes: 6.
Wheel Size: 20 inches in diameter.
Axle Position: Trailer.
Axle Group: T5.
ABS: ABS Ready (machined for an ABS tone ring).
Hub Cap Bolt Circle: 5-1/2 inches (13.97 cm).
Axle Stud Thread Size: .31-18.
Number of Axle Studs/Holes: 6.
Overall Length: 6-15/16 inches (17.63 cm).
Seal Bore Diameter: 6 inches (15.24 cm).
Weight: 4.09 lbs (9 kg).
Includes: The bare wheel hub (does not include bearings or studs).
Cross-Reference Part Numbers
The following part numbers are considered suitable replacements or direct cross-references for the Gunite TX229K spoke wheel hub:
PAI Industries: 803251
Webb Wheel: 75209A
Gunite (internal/related): GUNTX229K, TX228K
Compatible Bearings
While the TX229K is sold as a bare hub, it is designed to be used with specific inner and outer bearing components, which also have cross-references:
Outer Bearing (Cup & Cone): Timken HM212011 / HM212049
Inner Bearing (Cup & Cone): Timken HM218210 / HM218248
